Product Specification

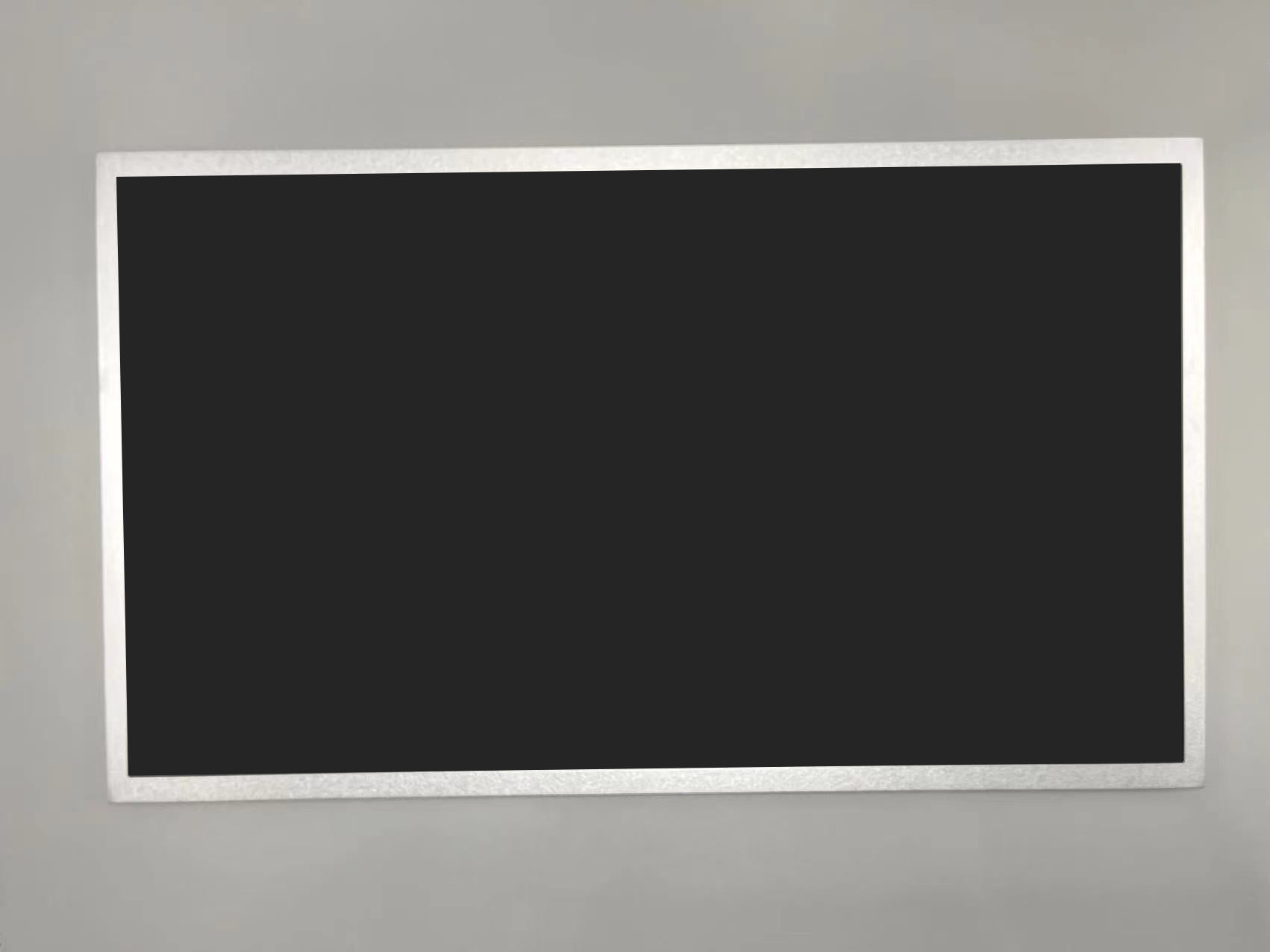

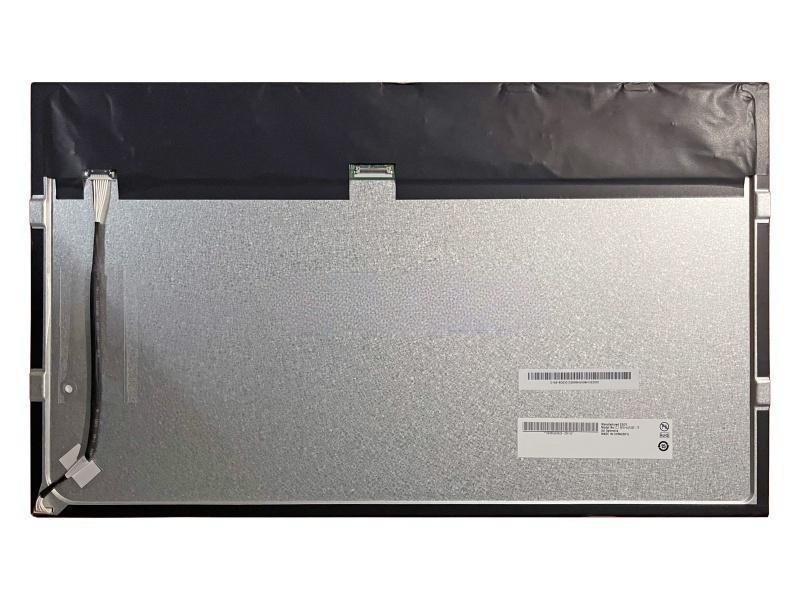

Module | 18.5″ Color TFT-LCD |
Model Name | G185HANO 1.3 |
Display Characteristics
The following items are G185HANO 1.3 characteristics summary at 25 °C (Room Temperature).
Items | Unit | Specifications |
Screen Diagonal | inch | 18.47 |
Active Area | mm | 408.96 (H) × 230.04 (V) |
Pixels H x V | 1920 x 1080 | |
Pixel Pitch | mm | 213 (per one triad) × 213 |
Pixel Arrangement | R.G.B. Vertical Stripe | |
Display Mode | AHVA mode, Normally black | |
Nominal Input Voltage VDD | Volt | 3.3 V |
Typical Power Consumption | Watt | 21.2 W(Max) |
Weight | Grams | 1200 (Typ) |
Physical Size | mm | 428.24 (W) x 252.87 (H) x 8.03(D)Typ 429.30 (V) x 253.06(H) x 9.1 3(D) Typ with hook |
Electrical Interface | EDP | |
Surface Treatment | Anti-Glare, 3H | |
Support Color | 16.7M colors, True 8 bit | |
The most suitable view angle | – | |
Temperature Range Operating Storage (Non-Operating) | °C °C | -20~70 -20~70 |
RoHS Compliance | RoHS Compliance |
